Mr. Steam CU2500
CU Series, 60KW Steam Bath Generator, Mr. Steam
The Mr. Steam CU2500 60 kW commercial steam bath generator is engineered for the most demanding commercial steam rooms. This pressurized steam generator is suitable for one or two steam rooms measuring up to 2500 adjusted cubic feet (ACF).
**The CU2500 was replaced with the C2500 April 1, 2019 - CU2500 to be used as a replacement system only**
The CU2500 is a high-performance, low-maintenance commercial steam shower generator constructed with a durable stainless-steel casing. The unit is vertically built to fit narrow mechanical rooms for easy installation and maintenance.
The Mr. Steam CU2500 steam room boiler complies with all UL, cUL, and ASME requirements to ensure safety and quality. The unit includes a carbon steel pressure vessel wrapped in insulation for efficient operation and includes a 60-kilowatt corrosion-resistant stainless-steel heating element. All units are wired and pre-tested before shipping to assure that the generators are working perfectly.
Mr. Steam CU Series generators are engineered for around-the-clock use in health clubs, day spas, resorts, and commercial wellness facilities. CU Series electric steam shower generators provide years of reliability, durability, and exceptional performance.
The CU2500 is available in 208V, 240V, and 480V three-phase (3-PH) configurations.
The unit requires the use of the available Digital 1 control package for operation. The control maintains pre-set steam room temperatures and ensures a consistent steam production.
We recommend using the available Automatic Blowdown System for use with the Mr. Steam CU2500. Additionally, we recommend an effective water treatment system to ensure optimal performance and longevity.
SteamSaunaBath is proud to be an authorized Mr. Steam partner and offer the full line of Mr. Steam products and parts.
We guarantee the lowest price. If you see a lower price advertised for this item elsewhere, give us a call!
SteamSaunaBath is the bathing environment experts. We specialize in steam room and sauna design, sales, installation, maintenance, and repair services. Our half-century of hands-on experience means that we are uniquely qualified to ensure the success of your facility’s bathing space and an unparalleled steam bathing experience. To contact a SteamSaunaBath Bathing Specialist, call: (800) 707-2862.
NOTE: Additional Freight Charges May Apply.
CU2500 Club Generator
- Sight glass
- Standard with full 1" drain port
- Painted stainless steel casing
- Compact vertical design
- Durable electronic components
- Features National Board registered pressure vessel
- Use high quality fibrous glass pressure vessel insulation for maximum energy performance
- Features stainless steel heating elements for corrosion resistance with ASME grade flanges for longevity and reliable performance
- Steam-rated operating and high limit pressure controls for Steam-On-Demand
- Pressure gauge and sight glass to provide operating information at a glance
- Easy installation and service accessibility
- Meet ASME requirements and UL/CSA nationally recognized testing standards
Digital 1 Control (sold separately)
- Steam room temperature regulating sensor
- Advanced low-mass, quick response thermistor with sensor guard
- Durable and capable of responding to steam room temperature within tight tolerances
- Electronic temperature control factory pre-installed with panel mount design supplied with a plate for optional remote installation in a standard 4X4 electrical box
- Allows owner/operator to set room temperature accurately and reliably
- Providing efficient, consistent control with full 100˚ F - 120˚ F range
- Integrated in-steam room high temperature control provides an additional level of reliability
Steam Solenoid Valve (sold with control package)
- All brass construction with stainless steel trim, sized to match steamhead distribution
- Steam-rated seat for high reliability and quick response steam delivery
Aromasteam Steamhead (sold with control package)
- All brass construction with polished chrome finish
- Full 3/4 inch NPT size for quiet, controlled steam delivery
- Supplied with full coverage polycarbonate cover
- Engineered to operate seamlessly with Mr. Steam's AromaFlo aromatic oil delivery system
- Steam bath generator
- Installation and operation manual
- Limited warranty
| Model | CU2500 |
|---|---|
| Minimum Adjusted Cubic Feet | 2001 |
| Maximum Adjusted Cubic Feet | 2500 |
| Kilowatt Rating (KW) | 60 KW |
| Shipping Weight | 380 lbs |
| Water Supply Connection | 1/2" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 3/4" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 3-1/2" x 3-1/2" |
| Control Sensor Cable | 30' 5", 2 Conductor, 24 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 3/8" Diameter |
| Generator Control Connection | 6 Position Terminal Block |
| Generator Control Cable | 6" Long, 4 Conductors, 16 AWG |
| Width | 24" |
| Depth | 33" |
| Height | 44" |

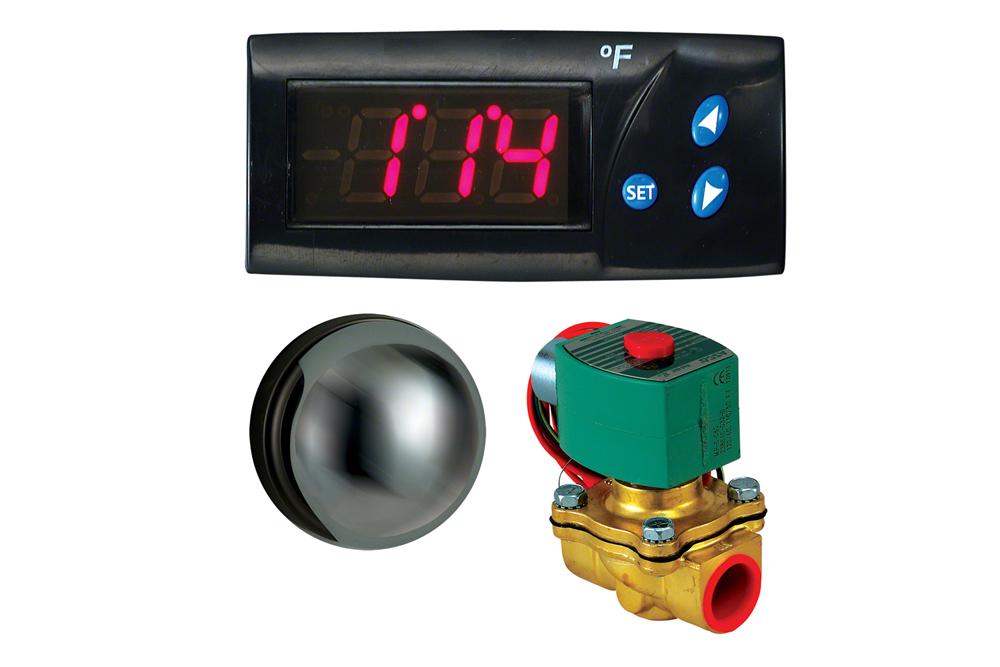

The boiler-mounted Mr. Steam CU1-Digital1 room temperature control allows facility operators to set and maintain a 100-120-degree steam room temperature range. The CU1-Digital 1 operates with the Mr. Steam CU360-CU1400 steam room boilers.
UKU Local sauna controller makes sauna heating easy and comfortable. It can be used with different manufacturers’ heaters.

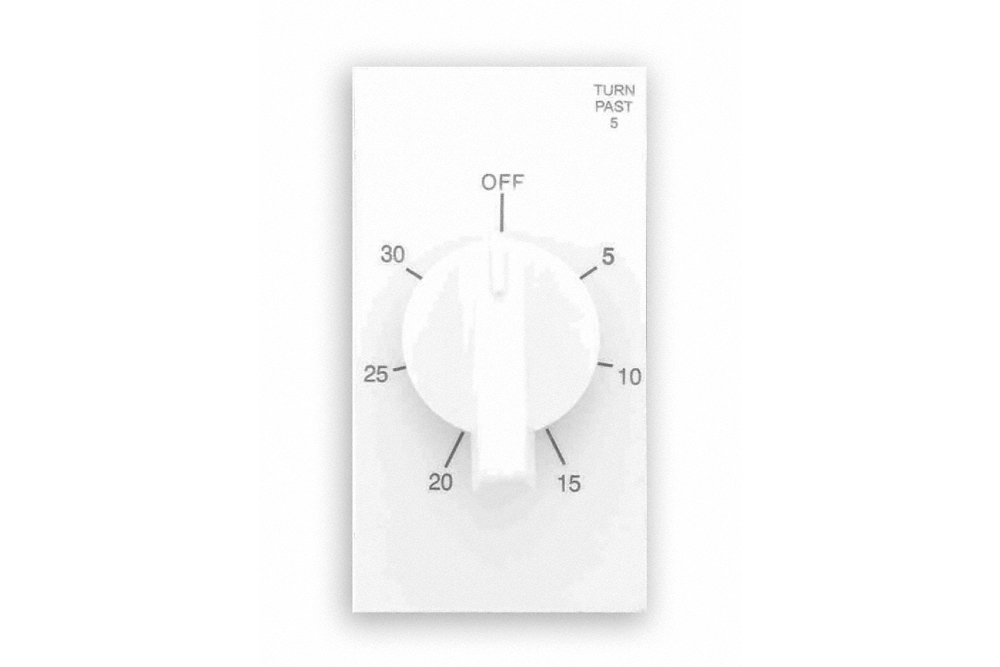

Optional, and for use with all Mr.Steam CU Series boilers the user activated, CU-99216B 30-minute Mechanical Timer mounts near the steam room for steam on/off operation.
