AX Series 11KW Steam Shower Generator, Amerec
AX Series 11KW Steam Shower Generator, Amerec
The Amerec AX11 steam shower generator is engineered for home steam rooms up to 375 adjusted cubic feet (ACF).
If you see a lower price on the Amerec AX11 steam generator, call us, and we’ll beat it, plus 10% of the difference!
The Amerec AX11 features a stainless-steel tank, professional-grade heating elements and parts, durable electronic components, and an electronic water-level control. The unit includes a Sequential Temperature Control which ensures an even and consistent flow of soft steam.
Equipped with the latest technology, Amerec AX Series generators are engineered to provide years of consistent, reliable, and maintenance-free operation. The AX11 steam unit offers the Warm Start feature which maintains a consistent tank water temperature and reduces heating time.
The compact design of the generator installs conveniently out of sight in cabinets, closets, vanities, and other similar locations.
The Amerec AX11 11kW steam generator is available in 240V (9016-600) and 208V (9016-700) operation and can be field-wired for single-phase or three-phase configurations.

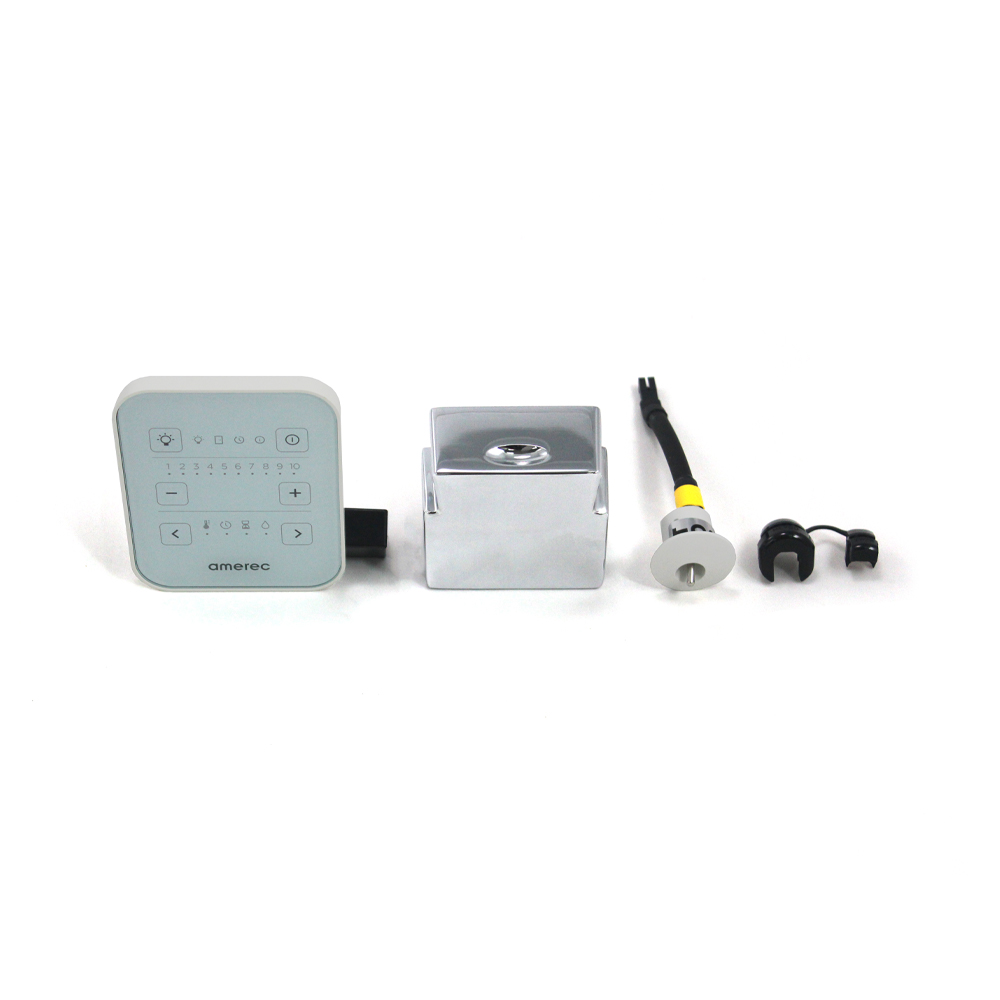

The AX11 generator requires the use of an Amerec A6, A3, Olympic, or Cascade control package for operation. The A6 control can be paired with the AmerecConnect app and features Intelligent Start technology which coordinates heating time and desired bath start time, saving water, time, and energy.
We recommend Amerec’s Auto Drain System with your AX11 which drains the generator tank after each bathing session to prevent lime build-up and calcification of the unit.
The Amerec AX 11 steam bath generator carries a limited lifetime warranty and is fully serviceable. Amerec AX generators are UL, CSA, CE, and ETL listed for your safety.
AX residential steam shower units have the flexibility to be linked in tandem to accommodate steam rooms larger than 550 cubic feet.
All Amerec generators are designed, engineered, and constructed in the USA.
SteamSaunaBath is proud to be an authorized Amerec partner and offer the best steam showers from Amerec for homes and health clubs.
We guarantee the lowest price. If you see steam showers for sale at a lower price, give us a call, we’ll beat it! See our guaranteed price policy for details.
SteamSaunaBath is the bathing environment experts. We specialize in sauna and steam room design, sales, installation, maintenance, and repair services. Our half-century of hands-on experience means that we are uniquely qualified to ensure the success of your bathing space and an unparalleled sauna experience. Contact a SteamSaunaBath technical bathing specialist to help you build a steam room: (800) 707-2862.
- Warm Start feature standard
- Stainless steel tank
- Industrial grade, serviceable heating elements
- Durable electronic components
- Electronic water-level control system
- Low voltage safety control circuits
- Electrical can be wired for 1-phase or 3-phase in the field
- Optional tandem operation for room size greater than 550 cu ft (requires purchase of a tandem cable)
- Full 3/4" port drain valve
- ASME safety valve
- UL/CSA/CE listed
- 11KW Steam bath generator
- Installation and operation manual
- Limited warranty
| Model | AX11 |
|---|---|
| Shipping Weight | 32 lbs |
| Minimum Adjusted Cubic Feet | 175 |
| Maximum Adjusted Cubic Feet | 375 |
| Kilowatt Rating | 11 KW |
| Nominal Amperage 240V 1PH | 46 |
| Water Supply Connection | 3/8” Compression Connection |
| Generator Steam Line Connection | 1/2” NPT |
| Steam Head Connection | 1/2” NPT |
| Drain Connection | 3/4" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve | 10 PSIG |
| Control "Rough In" Cut Out | 2-3/8” Diameter |
| Generator Control Connection | 4-Pin |
| Generator Control Cable | 50’, 4-Conductor, Cat5 |
| Control Sensor "Rough In" Cut Out | 7/8" Diameter |
| Control Sensor Cable | 50’, 2-Conductor, 22 AWG, Shielded Cable |
| Width | 16-1/2” |
| Depth | 6-1/4” |
| Height | 13” |

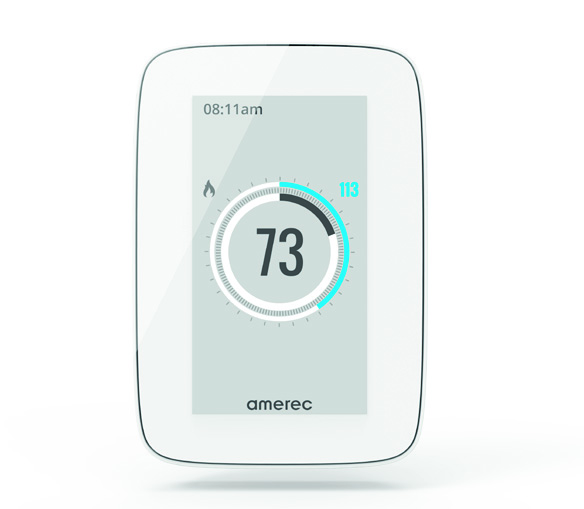

The Amerec A6 control unit is compatible with any Amerec AX Series residential steam bath generator.
Designed for use with Amerec’s AX Series residential steam bath generators, this soft-touch control unit may be mounted conveniently on a wall surface either inside or outside the steam shower.

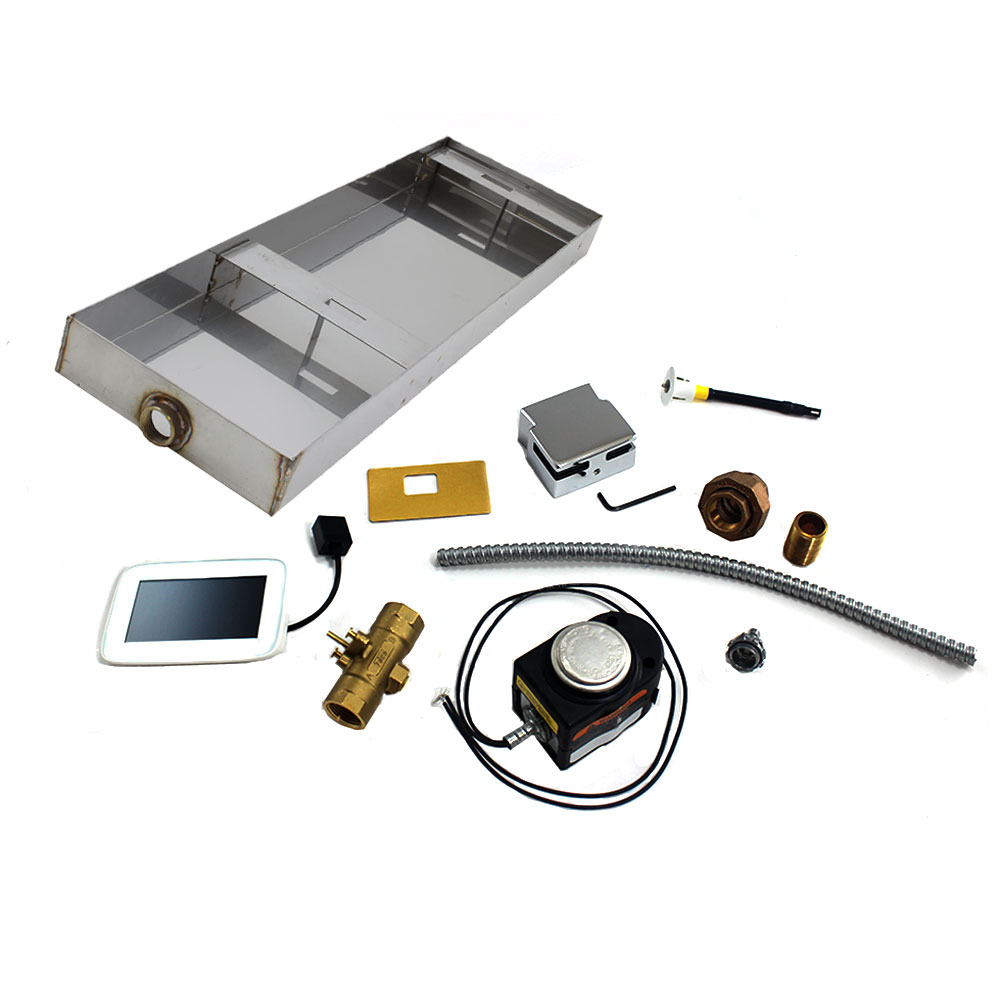

The Amerec Olympic steam shower control package, compatible with the AX Series of generators, allows you to tailor your steam bathing experience.

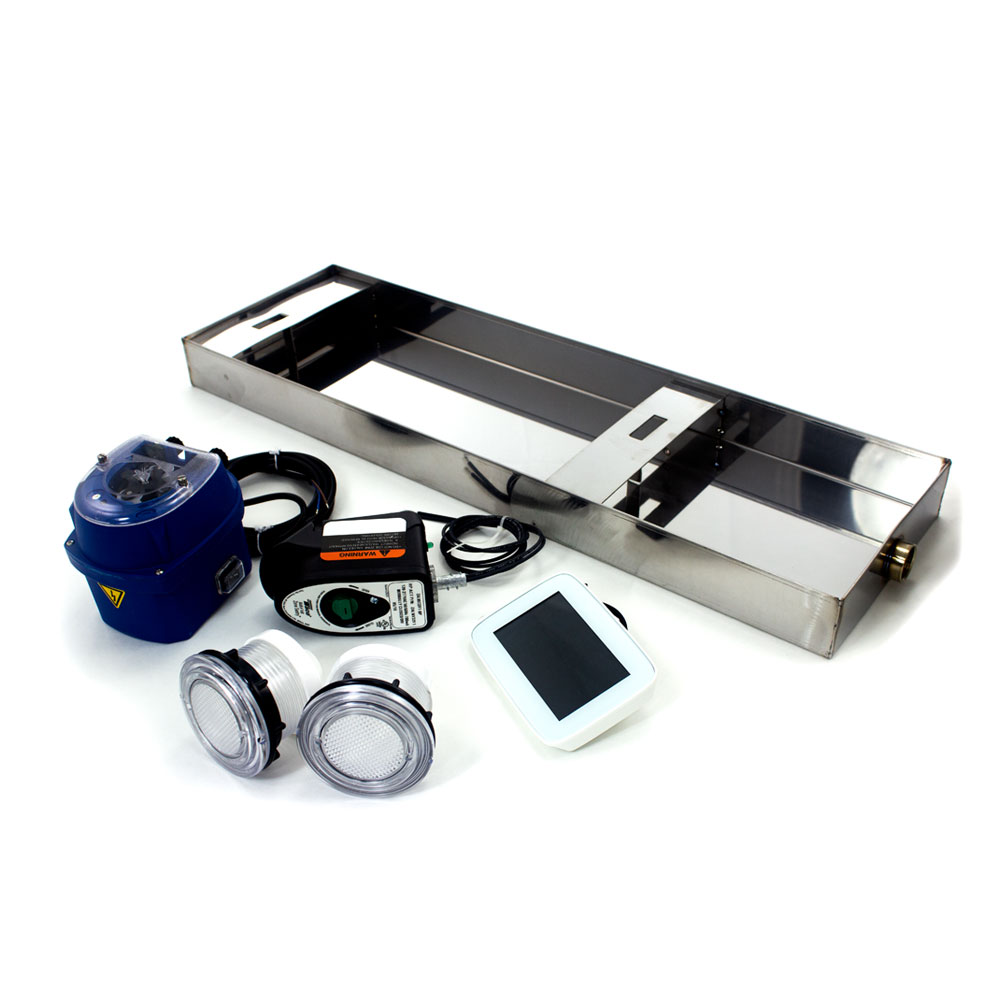

The Amerec Cascade steam shower control package, compatible with Amerec AX Series steam shower generators, allows bathers to tailor their home steam bath experience.
Maximize your warranties!

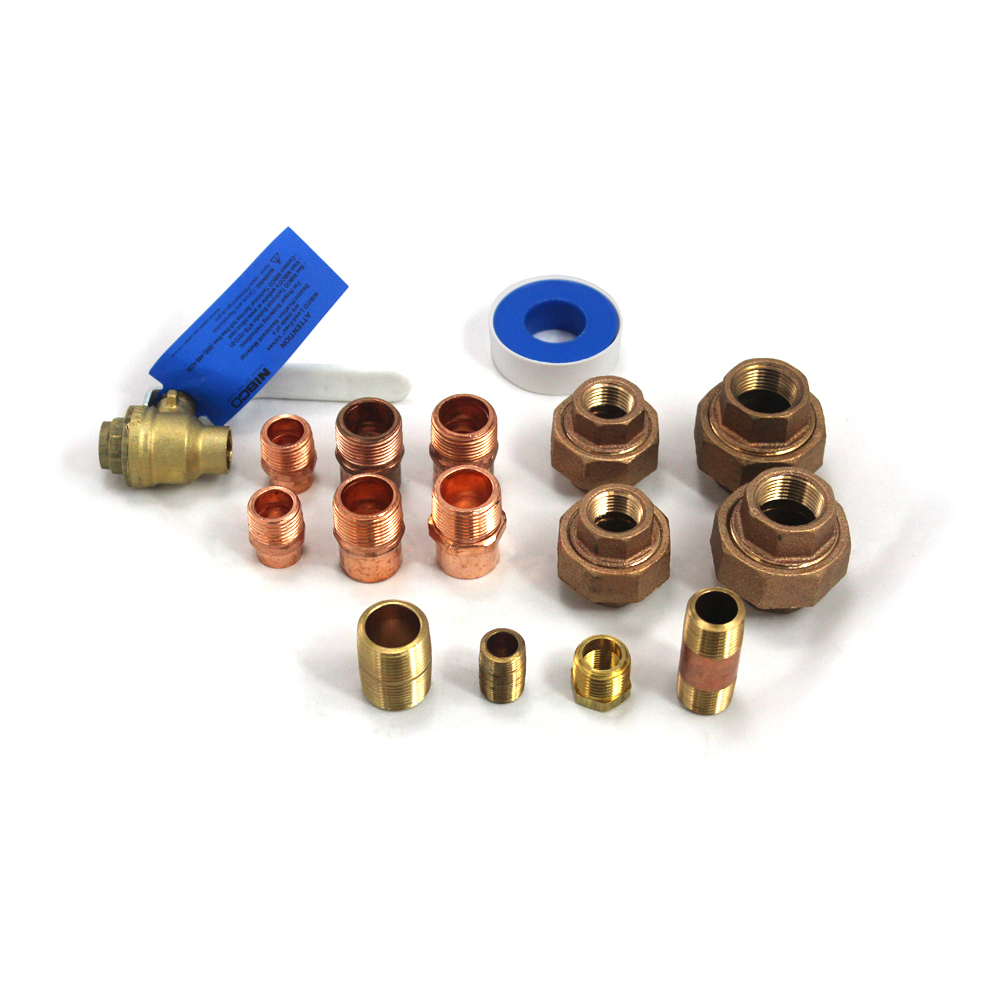

Quality plumbing fittings are the first step to ensuring a TROUBLE-FREE installation!
